Potente rendimiento: Desarrollado por procesadores AMD EPYC 9004 con 128 núcleos Zen 4c, 12 canales, hasta 4800 MHz DDR5 y soporte para un TDP máximo de hasta 400 vatios
Diseño de almacenamiento y expansión escalable: hasta 12 unidades NVMe all-flash en el panel frontal, 4 NVMe en el compartimento central y 3 ranuras PCIe 5.0 para mayor ancho de banda y actualización del sistema
Diseño de módulo de red flexible : módulo LAN integrado y módulo OCP 3.0 con ranura PCIe 5.0 en el panel posterior para una conectividad más rápida
Solución avanzada de refrigeración por aire: cuenta con un disipador térmico de refrigeración por aire de volumen mejorado (EVAC) para procesadores con mayor TDP
Gestión mejorada de la infraestructura de TI: control remoto ASUS ASMB11-iKVM con ASPEED AST2600, software de gestión de TI ASUS Control Center y solución de raíz de confianza a nivel de hardware
Lectura para cargas de trabajo de IA y HPC: hasta dos GPU de una sola ranura.

Especificaciones:

Processor / System Bus

1 x Socket SP5 (LGA 6096)
4th Generation AMD EPYC Processors with AMD 3D V-Cache technology
AMD EPYC™ 9004 Series Processors (up to 400W)

Memory

24 x DIMM slots
DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM
1DPC up to 4800
2DPC up to 4000(1R+1R)
2DPC up to 3600(1R+2R)/ (2R+2R)
Maximum 6144GB
* Refer to support page for more information

Expansion Slots

Up to 3 PCIe Gen5 slots + 1 OCP3.0
1 x PCIe x16 slot (Gen5 x16 link, FH, HL)
1 x PCIe x16 slot (Gen5 x16 link, LP, HL)
1 x PCIe x16 slot (Gen5 x8 link, LP, HL)
1 x OCP3.0 socket (Gen5 x16 link)

Storage

Storage Controller :
CPU Integrated
Optional kits Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G HBA card

Drive Bays

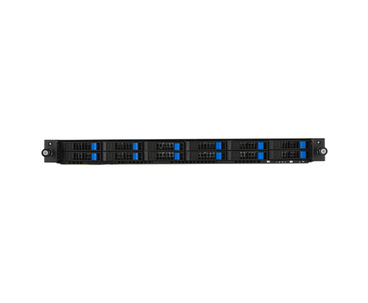

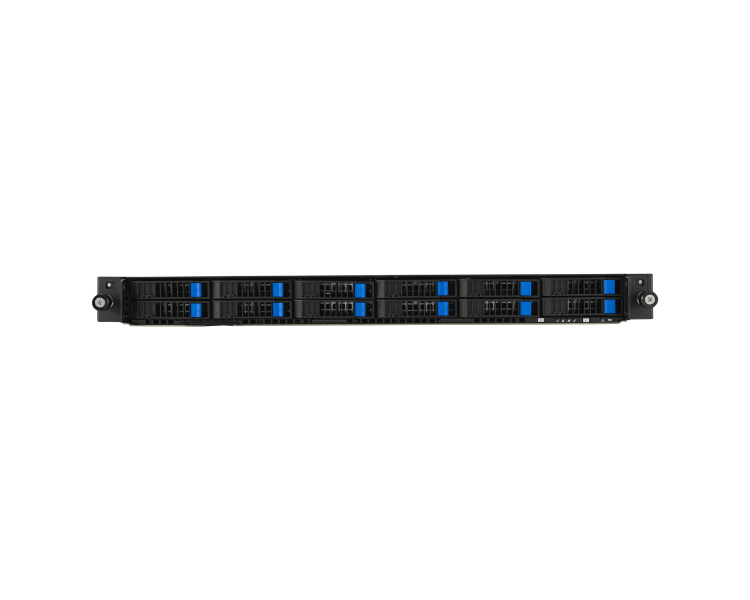

Front bays:
12 x 2.5” Hot-swap Storage Bays
12 x SATA/SAS/NVME
Optional 4 x 2.5” Internal Storage Bays
4 x SATA/NVME
*SAS support only from optional SAS
HBA/RAID card
2 x M.2 connectors

Networking

1 x Dual Port Intel I350-AM2 GbE LAN Controller
1 x Management Port

Graphic

Up to 2 single-slot GPU cards
*Internal Storage Bays SKU only support 1 single-slot GPU card

Multi-GPU Support

Please find the latest GPU support from https://servers.asus.com/support/GPU

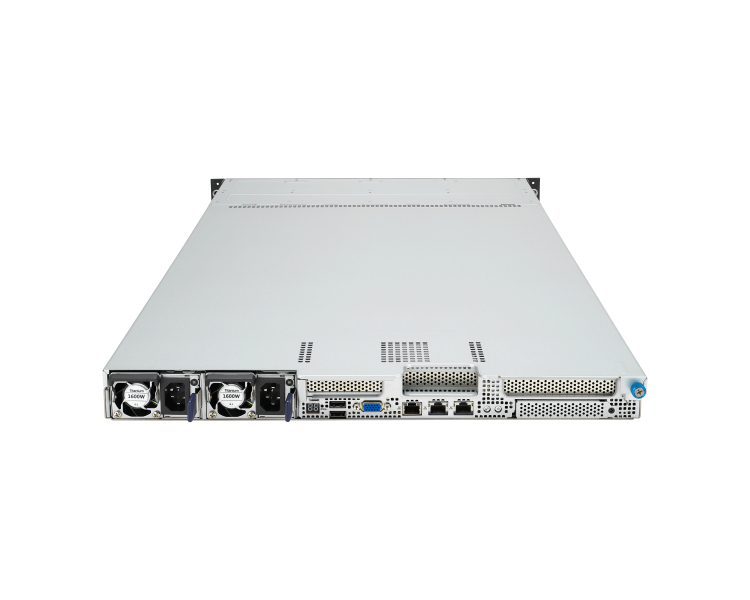

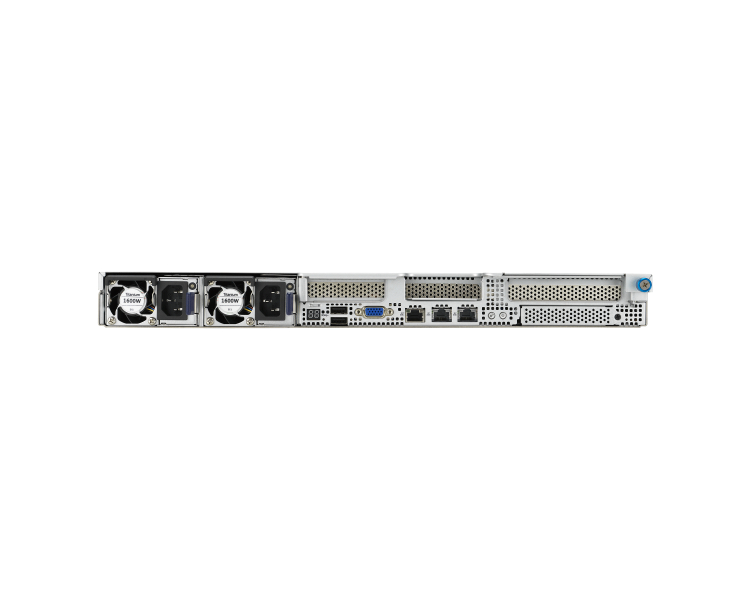

Rear I/O Ports

2 x USB 3.2 Gen1 ports
1 x VGA port
1 x Management port
2 x 1GbE LAN ports

Switch/LED

Front:
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED
LAN 1-2 LED
Rear:
1 x Port80 LED (Q-Code)
1 x Power Button/LED
1 x Location Button/LED
1 x Message LED

OS Support

Please find the latest OS support from https://servers.asus.com/support/os

Management Solution

ASUS Control Center
ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
BSMI, CB, CE, RCM, FCC(Class A)

Dimensions

842.5mm x 449mm x 43.85mm (1U)
33.17" x 17.68" x 1.73"

Form Factor

1U

Weight

(approximate)
Net Weight: 14.16 kg
Gross Weight: 19.16 kg

Power Supply

1+1 Redundant 1600W 80 PLUS Titanium
Power Supply
1+1 Redundant 1600W/1200W 80 PLUS Platinum
Power Supply

Environment

Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)

Note
Operating Temperature based on configurations
